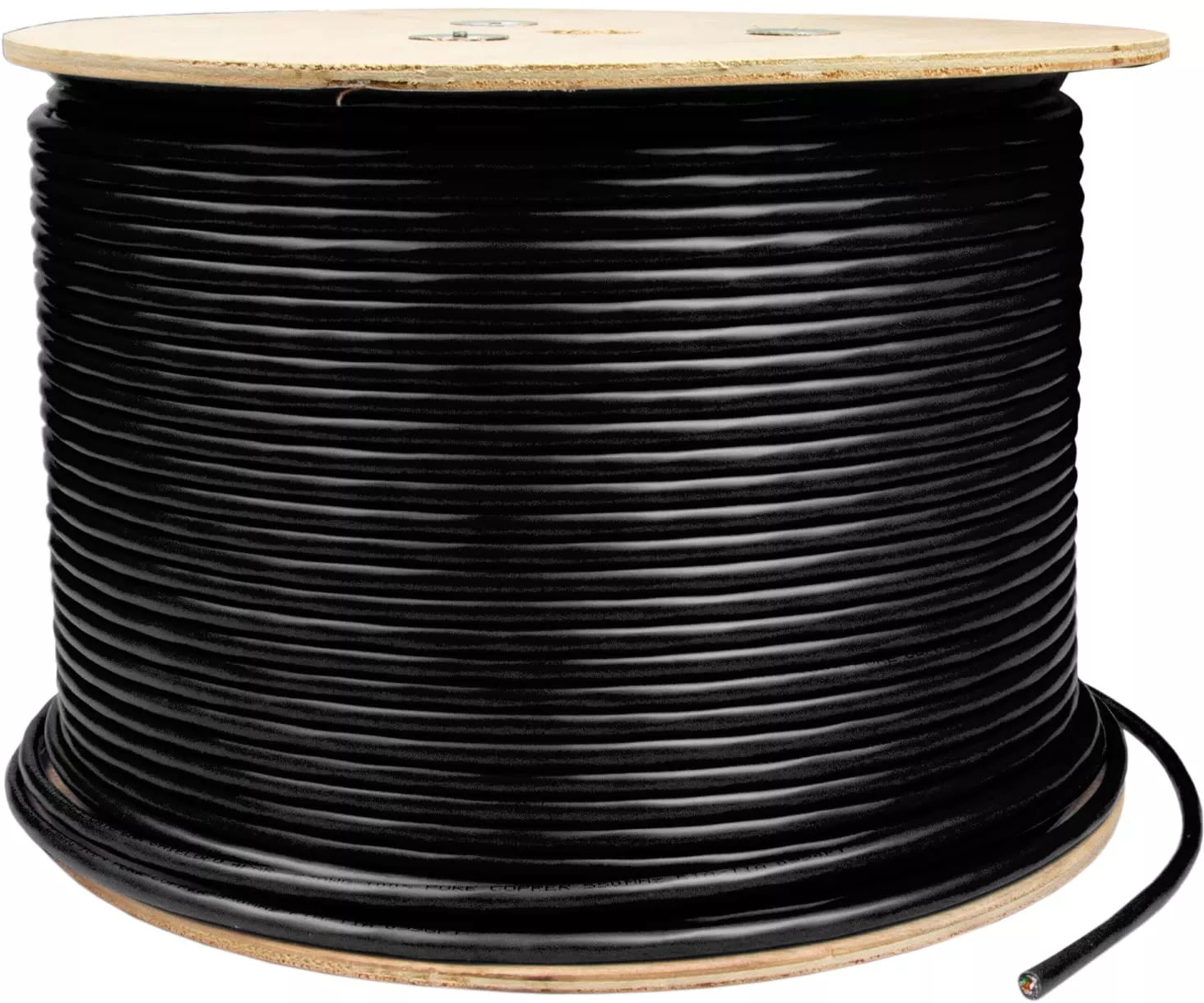

Triplett Model CAT6AU-1000BK high performance CAT6A UTP 23AWG data cable is suitable for 10GS speed applications. Fluke tested and exceeds TIA/EIA-568.C.2. CMR rated. 1000′, Black. ROHS compliant/UL listed.
CATEGORY: CAT6a Shielded Cable
Features
- High performance suitable for 10GS speed applications
- Riser rated jacket
- CMR Rated
- Fluke tested for CAT6A UTP cable
- Exceeds TIA/EIA-568.C.2
- RoHS compliant/UL Listed
Specifications
| Rated Temperature | 70oC |
| Rated Voltage | 30V |
| Testing Standard | Fluke Pass |
| Conductor Material | Solid Bare Copper |
| AWG | 23AWG |
| Conductor Diameter | 4 x 2 x 1/0.58 0.01mm |
| Insulation | HDPE |
| Average Thickness | 0.25mm |
| Insulation diameter | 1.1 0.03mm |
| Ripcord | Yes |
| Separator | PP |
| Jacket | PVC Plenum |
| Average Thickness | 0.61 0.01mm |
| Outer Diameter | 8.10 0.01mm |
Downloads
Datasheet
