Application : Meritor ADB-1560
Brake System : Air Disc
Disc Brake Shape : U Shape

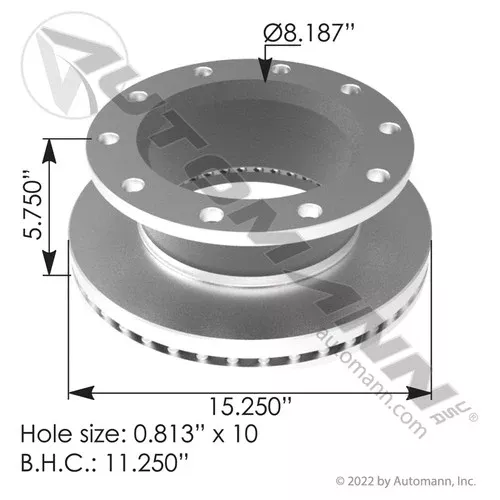

Disc OD (A) : 15.250″
Hole Dia. (D) : 0.813″
Nos. Hole (E) : 10
Overall Depth (B) : 5.750″
Pilot Dia. (F) : 8.187″
- Part number: 153.118Z156
- OE MFG: Meritor
- OEM Reference: 3218Z156
- Cross Reference: AUTOMANN : 153118U1009, 153118Z156; GUNITE : 1663172C1, 3218U1009, 3218Z156, 3218Z156RI, 82353218U1009, 82353218Z156, 901025008, ATI3218U1009, ATI3218Z156, MER3218Z156, MERITOR BRAKE 3218Z156, MPBR73601, R6085, R6200, RZ3218Z156, TDA3218U1009, TDA3218Z156, TWD3218U1009, TWD3218Z156; MERITOR : 3218Z156 |
