![Autel Robotics EVO II Dual 640T Thermal Drone Rugged Bundle [V3]](https://www.hotautoprosupply.com/wp-content/uploads/2026/10/autel-robotics-evo-ii-dual-640t-thermal-drone-rugged-bundle-v3.webp)
- FREE Gifts (Propeller Guards & Landing Pad)
- 50MP Ultra-Sensitive Camera
- 7.9″ Smart Controller V3
- 640×512 30Hz New Thermal Imaging Sensor
- Multiple Temperature Measurement Modes
- 360 Obstacle Avoidance
- SkyLink 2.0 Video Transmission
- 15KM Image Transmission
[keyfeatures]
Autel Robotics EVO II Dual 640T V3 Thermal Drone
Autel EVO 2 Dual 640T V3 infrared drone is an industry-first drone combining infrared imaging camera with visible light camera. With thermal resolution up to 640×512 and a visual spectrum sensor, EVO 2 becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.
EVO II Dual640T V3 Top Highlights
640×512 30Hz New Thermal Imaging Sensor
Equipped with 640*512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.
Maximum Efficiency In All Viewing Conditions
EVO II Dual 640T V3 supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.
DRI Ranges
DRI stands for Detection, Recognition and Identification.
1Detection: Detect if an object is present
2Recognition: See what type of object it is (i.e. person, vehicle, airplane)
3Identification:Determine subject affiliation and intent.
Picture-in-Picture Mode (For Enhanced Situational Awareness)
Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision-making.
Multiple Temperature Measurement Modes, Professional Analysis Tool
Capture And Preserve Even The Smallest Of Details
50-MP ultra-sensitive visual camera
The visual camera installed in the drone features a unique RYYB sensor with Moonlight Algorithm 2.0. This improves the camera’s 50 megapixels by giving users more information for better forensics and analysis even in low-light situations.
In low light, it is possible to detect, recognize, and categorize individuals and proceed with confidence. And with a mix of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for quick and precise tracking, you’ll never lose sight of your targets.
With the aid of a combination of visual and thermal images captured by these dual cameras, you can swiftly understand data and make important decisions.
0.8″ RYYB CMOS Sensor
Equipped with a .8″ RYYB CMOS sensor, featuring moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis. Detect, identify, classify subjects in low light situations and proceed with certainty.
4x Lossless Zoom
The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.
4K HDR For Greater Dynamic Range
4K HDR video adds dynamic range by merging long-, medium-, and short-term exposures into a single frame. 10-bit color depth captures over 1 billion colors to provide greater flexibility in post production while still retaining rich details in the shadows and highlights.
Mission Planner
Rectangular and Polygon mission planners – Those are going to be great for anybody that’s dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you’re going to be able to do that in an autonomous fashion. Then you’re going to be able to take EVO II Dual 640T’s images and upload them to your 3D mapping.
360 Obstacle Avoidance
Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
EVO II – AI Enhanced Dynamic Track
EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.
Autel EVO II Dual 640T V3 Drone Dynamic Track 2.1
Autel Smart Controller V3
Smart Controller V3’s 7.9-inch, 2000nits high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9.3 miles (15km) away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
Autel Live Deck 2
The Autel EVO 2 Dual 640T V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.The Live Deck 2 features:
11080P/60FPS Video Stream Capability
2 Three Auto-Switch Bands
37.45 mile (12 km) Transmission Range
45-Hour Battery Life
5IP43 Resistance
Powerful Infrared Thermal Analysis Tool(IRPC)
This free temperature measurement analysis tool is developed for the 640T V3, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the “Word” icon Export report. Generate analysis report)
Thermal Analysis Tool
All Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for EVO II can be purchased separately and are interchangeable!
Industry Leading Performance
The EVO II Dual 640T V3’s flight performance has been fully optimized thanks to its new power system and carbon fiber structural design. Equipped with an industry-leading dual-frequency image transmission system, the unit also provides stronger anti-interference capabilities and stable transmission of high-definition images up to 1080p.
38Min Max Flight Time 45mph(20m/s) Max Flight Speed
9.3miles(15km) Max Transmission Range 2lbs(920g) Max Lift Capability
39mph(17m/s) Max Wind Resistance
EVO II Dual 640T [V3] – Wide Application
EVO II Dual 640T [V3] in Police Use
An Autel EVO II Dual thermal drone saved the day for a Nevada sheriffs department when a suspect fleeing into the cover of darkness could be located because of his heat signature. While one suspect was apprehended pretty quickly, the other fled the scene on foot into the night.Typically, when that happens, the person running gets away because theres not a great way to maintain visuals in the dark. However, Greenhut used the EVO IIs thermal camera to explore the area until he found the suspect attempting to hide behind a tree. Greenhut locked the drones sight in on the man until backup arrived to arrest him.
Autel EVO II Dual 640T
EVO II Dual 640T [V3]In Industrial Inspection
The EVO II 640T uses a visual spectrum sensor and a 640*512 radiometric thermal sensor, giving inspectors the ability to perform multiple roof inspections in half the time it takes by conventional methods. Our drone kits will not only allow you to visually inspect the entire building , but also use thermal technology to check for hot spots. This enables you to safely and quickly check the status of the structure. As well as to help you identify defects, leakage, and corrosion issues, without having to spend on additional personnel and equipment.
Autel EVO II Dual 640T For Industrial Inspection
EVO II Dual 640T [V3]In Search and Rescue operations
Autel EVO II 640T Thermal Drone is a versatile and reliable tool for search and rescue operations. With its high-resolution thermal imaging camera, long flight time, and accurate positioning capabilities, this drone is designed to assist search and rescue teams in finding and rescuing victims in a timely and effective manner.
Autel EVO II Dual 640T For wildlife management
EVO II Dual 640T [V3]In Wildlife Management
Maximize your livestock protection with the advanced thermal imaging capabilities of the Autel 640T drone. As a leading solution in the industry, the EVO II Dual 640T provides peace of mind for farm owners by detecting potential threats, such as predators, that could cause harm to farm animals. With its thermal imaging technology, even the most elusive creatures, like Wild Boar, can be easily located and counted. This reliable and effective tool ensures the safety and security of your livestock, making the Autel EVO II Dual 640T an indispensable asset for any farm owner.
Autel EVO II Dual 640T For wildlife management
EVO II Dual 640T [V3]In Residential Roof Inspection
Inspect and document the exterior condition of shingle, tile, or slate roof structures with ease using the high-resolution visible imaging capabilities of the Autel EVO II Dual 640T drone. Utilizing unmanned aerial vehicle (UAV) technology, this drone provides a detailed view of the roof, allowing you to easily observe hail damage, wind damage, openings in the roof, cracked tiles, and much more. When water gets on the surface of the membrane, it creates a higher temperature that can be easily detected using the infrared imaging capabilities of the Autel 640T. This versatile tool makes roof inspections quicker, safer, and more efficient, delivering reliable results every time.
EVO II Dual 640T [V3] In Legal Hunting
The EVO II Dual 640T V3 is a highly advanced drone that can greatly assist hunters in their pursuits. With a dual 640T thermal camera and high-resolution imaging capabilities, hunters can locate and track game from the air. The drone’s long flight time and stable flight performance also allow for extended monitoring and observation of wildlife. This cutting-edge technology can help hunters plan and execute successful hunting trips, increasing their chances of making a successful catch.
[spec]
Autel EVO II Dual 640T V3 Specs
Thermal Camera
| Sensor | Uncooled VOx Microbolometer |
| Lens | FOV H33V26 Focal length 13mm |
| Zoom | 1 – 16x |
| Pixel size | 12 m |
| Wavelength range | 8-14 m |
| Temperature range | High gain mode: -20 to +150 Low gain mode: 0 to +550 |
| Temperature measurement accuracy | 3 or 3% of reading (whichever is greater) @Environmental temperature-20~60 |
| Accurate temperature measurement distance | 2-20 meters |
| Video resolution | 640×512@25fps |
| Video format | MOV / MP4 (Support H.264/H.265) |
| Camera resolution | Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720 |
| Photo mode | Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s |
| Photo format | JPG (with irg file) |
Visible Light Camera
| Sensor | 1/1.28″(0.8″) CMOS Effective Pixels: 50 MP |
| Lens | FOV:85 35 mm format equivalent focal length: 23 mm Aperture:f/1.9 Focus range: 0.5 m to infinity (with auto focus) |
| ISO Range | Video: 100-64000 Photo: 100-6400 |
| Shutter Speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
| Digital Zoom | 1-16x (up to 4x lossless zoom) |
| Maximum photo size | 8192*6144(4:3) 4096*30 72(4:3) 3840×2160(16:9) |
| Image Format | JPG(default)/DNG/JPG+DNG |
| Video format | MOV/MP4 |
| Video resolution | 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |
| Max bitrate | 80Mbps |
| Supported file system | FAT32/exFAT |
Gimbal
| Weight | 0.30 lbs (135 grams) |
| Mechanical Range | Pitch: -135 to +45 Yaw: -100 to +100 |
| Controllable Range | Pitch: -90 to +30 Yaw: -90 to +90 |
| Stabilization | 3-Axis (Tilt, Roll, Pan) |
| Max Control Speed (Tilt) | 300/s |
| Angular Vibration Range | 0.005 |
Aircraft
| Takeoff Weight | 2.5 lbs (1150 g) |
| Max Takeoff Weight | 4.4 lbs (2000 g) |
| Dimensions | Folded: 8.98 x 5.24 x 4.33 inch (L x W x H) (228 x 133 x 110 mm) Unfolded: 16.69 x 13.94 x 4.33 inch (L x W x H) (424 x 354 x 110 mm) |
| Diagonal Distance | 15.63 in (397 mm) |
| Max Service Ceiling Above Sea Level | 22,965 ft (7000 m) |
| Max Flight Time (no wind) | EVO II Dual (640) 38min EVO II Dual (320) 40min |
| Max Hovering Time (no wind) | EVO II Dual (640) 33min EVO II Dual (320) 35min |
| Max Flight Distance (no wind) | 15.53 miles (25 km) |
| Max Wind Speed Resistance | 39-46 mph (Level 8) |
| Max Tilt Angle | Standard mode: 28 Ludicrous mode: 33 |
| Max Angular Velocity | 120/second |
| Max Ascent Speed | Standard mode: 11.18 mph (5 m/s) Ludicrous mode: 17.89 mph (8 m/s) |
| Max Descent Speed | Standard mode: 6.71 mph (3 m/s) Ludicrous mode: 8.94 mph (4 m/s) |
| Max Speed (near sea level, no wind) | Standard mode: 33.55 mph (15 m/s) Ludicrous mode: 44.73 mph (20 m/s) |
| Operating Temperature Range | 14F to 104F (-10C to 40C) |
| Operating Frequency | 2.4~2.4835GHz |
| Transmission Power (EIRP) |
2.4~2.4835GHz |
| GNSS | GPS/GLONASS/VIO/ATTI |
| Hovering Accuracy Range | Vertical: 0.78in (when vision positioning is active) 7.87in (with GPS positioning) Horizontal: 0.78 in (when vision positioning is active) 3.28 ft(with GPS positioning) |
| Internal Storage | 8 GB |
| SD Storage | Standard: 32 GB Max Micro SD Card Supported: 256 GB |
Sensing System (Obstacle Avoidance)
| Sensing System | Omnidirectional Binocular Obstacle Sensing System |
| Forward | Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60, Vertical: 80 |
| Backward | Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60, Vertical: 80 |
| Upward | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60, Vertical: 50 |
| Downward | Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 100, Vertical: 80 |
| Sides | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60, Vertical: 50 |
| Operating Environment | Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux> 20) Downward: Surface with clear pattern and adequate lighting (lux> 20) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
Remote Controller
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Max Transmission Distance | FCC9 kmwithout interference or obstruction CE5 kmwithout interference or obstruction |
| Real-time Image Transmission Quality | 720p@30fps / 1080p@30fps |
| Maximum Bit Rate of Real-time Image Transmission | 40Mbps |
| Transmission Power (2.4G) | FCC26 dBm ISED26 dBm CE20 dBm RCM20 dBm SRRC20dBm |
| Display screen | 3.26″ OLED 854W * 480HPixel Directly preview the video without connecting a mobile phone |
| Remote Controller Battery | 5000mAh |
| Run Time | 3 hours |
| Charging Time | 2 hours fast charge |
| Supported Mobile Device Size | Max Length: 3.30″ (84mm) Max Thickness: 0.51″ (13mm) |
| Supported USB Port Types | Lightning, Micro USB (Type-B), USB-C |
| Working current/voltage | [email protected] |
Battery
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Max Charging Voltage | 13.2 V |
| Battery Type | LiPo 3S |
| Energy | 82 Wh |
| Net Weight | 0.81 lbs (365 grams) |
| Charging Temperature Range | 41F to 104F (5C to 40C) |
| Max Charging Power | 93 W |
| Charging Time | 90min |
Introducing: Commercial Applications for EVO II
EVO II Dual 640T Thermal Imaging Demonstration
EVO II Dual 640T: Thermal Analysis Tool Overview
[accessories]

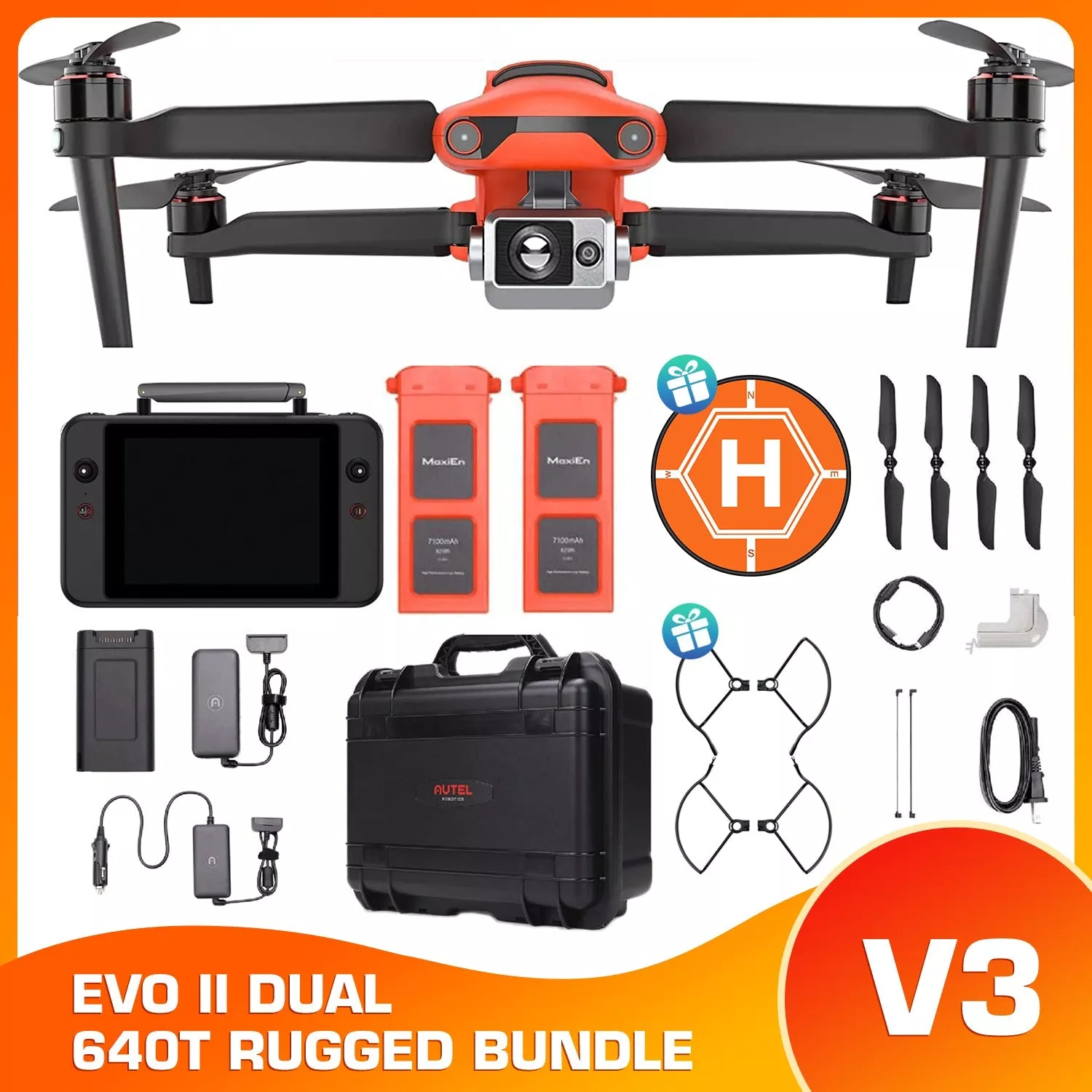

Autel EVO II Dual 640T V3 Rugged Bundle Package List
|
[downloads]
|
Name |
Download |
|
EVO II Dual 640T V3 Brochure – EN.pdf |
|
|
EVO II Series Disclaimer and Safety Guidelines – EN.pdf |
|
|
EVO II Dual Reports – FCC.pdf |
|
|
EVO II Dual Certificates – FCC.pdf |
*If you need certification from other countries or regions, please contact us.
[faq]
EVO II Dual 640T [V3] FAQ
Q: Which industries can evo ii dual 640t v3 be used in?
A It can be used for many fields, such as law enforcement, electrical power inspection, fire rescue, building inspection, legal hunting and more.
Q: What camera sensor does the 640T V3 use?
A The 640t V3 is equipped with a 640×512 30Hz new thermal imaging sensor and 0.8″ RYYB CMOS visible camera sensor.
Q: What is the effective image transmission distance?
A Autel EVO 2 Dual 640t V3 is equipped with brand new Skylink 2.0, which offers 15KM video transmission distance and 2.4GHz / 5.8GHz / 900MHz tri-band communication frequency.
Q: What factors affect the accuracy of temperature measurement?
A
1. The influence of the atmos-phere: The higher the temperature and humi-dity of the atmos-phere, the greater the temperature measurement error.
2. The distance between the camera and the measured object: The farther the distance, the greater t
