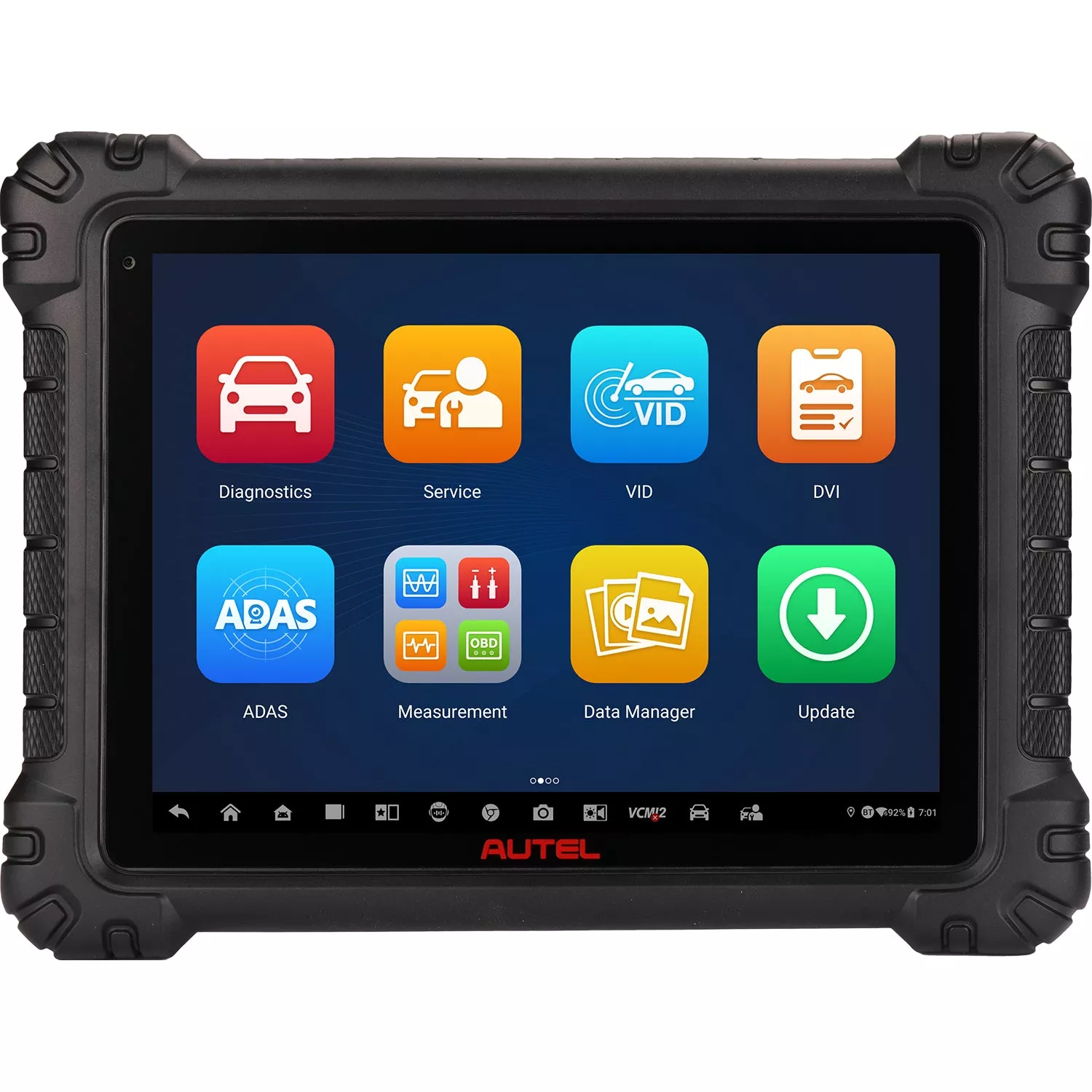

The Autel MaxiSYS MS919 S2 is the updated version of Autels powerful MS919 diagnostic tablet, built for OEM-level diagnostics, programming, and ADAS calibrations.
Equipped with an 11-inch anti-glare touchscreen, 12GB RAM, and 256GB onboard storage, the MS919 S2 delivers faster performance and higher efficiency compared to the original MS919. It runs on Android 13, supports Wi-Fi 6, and integrates seamlessly with the VCMI2 (6-in-1 Vehicle Communication and Measurement Interface) for unmatched diagnostic capability.
With advancedoscilloscope functions, topology mapping, security gateway access, and coverage of U.S., Asian, and European vehicles (1996present), the MS919 S2 is a comprehensive solution for professional technicians, shops, and fleets.
Key Features & Benefits
Bigger, better display 11 high-res anti-glare screen
Upgraded hardware 12GB RAM & 256GB SSD for faster response
Wi-Fi 6 support faster, more stable connectivity
VCMI2 (6-in-1) integrates an advanced oscilloscope, CAN-Bus tester, waveform generator, and more
48+ service functions reset, adaptation, and maintenance tools
Topology 3.0 Dynamic Network Analysis advanced ECU/module testing
ADAS-ready supports Autel calibration kits (sold separately)
Security Gateway Access covers Mercedes-Benz, VW/Audi, Nissan, Stellantis (AutoAuth required)
Specifications & Comparison
| Feature | MS919 | MS919 S2 |
|---|---|---|
| HARDWARE | ||
| Connection | Bluetooth MaxiFlash VCMI (Latest Protocols) |
Bluetooth MaxiFlash VCMI (Latest Protocols) |
| Screen | 9.7″ Touchscreen 15362048 DPI / TFT-LCD Asahi Glass |
11″ Touchscreen 21761600 |
| Battery | 15,000 mAh | 15,000 mAh |
| Processor | 2.2GHz + 1.8GHz Octa-Core | Octa-Core 2.7GHz |
| Memory | 128GB SSD / 4GB RAM | 256GB Storage / 12GB RAM |
| Camera | 16MP Rear / 16MP Front | 16MP Rear / 16MP Front |
| Docking Station | ||
| SOFTWARE | ||
| Operating System | Android 7.0 | Android 13 |
| Software Updates | 1 Year Free (Wi-Fi) | 1 Year Free (Wi-Fi) |
| Automatic Detection | Auto-VIN / Auto-Scan Scan VIN / Plate Scan |
Auto-VIN / Auto-Scan Scan VIN / Plate Scan |
| Secure Gateway Access | Authorized FCA Access (AutoAuth Account) |
Authorized FCA Access (AutoAuth Account) |
| License Plate Reader | Available on select vehicles | Available on select vehicles |
| Vehicle Coverage | US, Asian & European 1996+ passenger/light duty, some medium duty |
US, Asian & European 1996+ passenger/light duty, some medium duty |
| OBDII Test Modes | All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 |
All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 |
| Service Resets | 26 Service Features | 48 Service Features |
| FUNCTIONS | ||
| Diesel PM | Reset Diesel Emissions (Light & Medium Duty) |
Reset Diesel Emissions (Light & Medium Duty) |
| System Diagnostics | Access All Modules (In All Systems) |
Access All Modules (In All Systems) |
| Component Activations | Bi-Directional Control | Bi-Directional Control |
| Enhanced Functions | Coding Adaptations | Coding Adaptations |
| ADAS Calibration | ADAS Upgrade & Frame Kit* (Purchase Required) |
ADAS Upgrade & Frame Kit* (Purchase Required) |
| Battery Analysis | MaxiBAS Software** | MaxiBAS Software** |
| Complete TPMS | ||
| Topology Module Mapping | Color-Coded All System Status Screen (On Supported Vehicles) |
Enhanced Topology 3.0 Split-Screen PID Analysis |
| Oscilloscope | VCMI 5-in-1 Device: VCI, Multimeter, Waveform Generator, CAN Bus Tester |
VCMI2 6-in-1 Device: VCI, Multimeter, CAN Bus Check, Oscilloscope, Waveform Generator, Remote Expert Device |
| Split Screen Display | View Multiple Functions at Once |
