Product Introduction

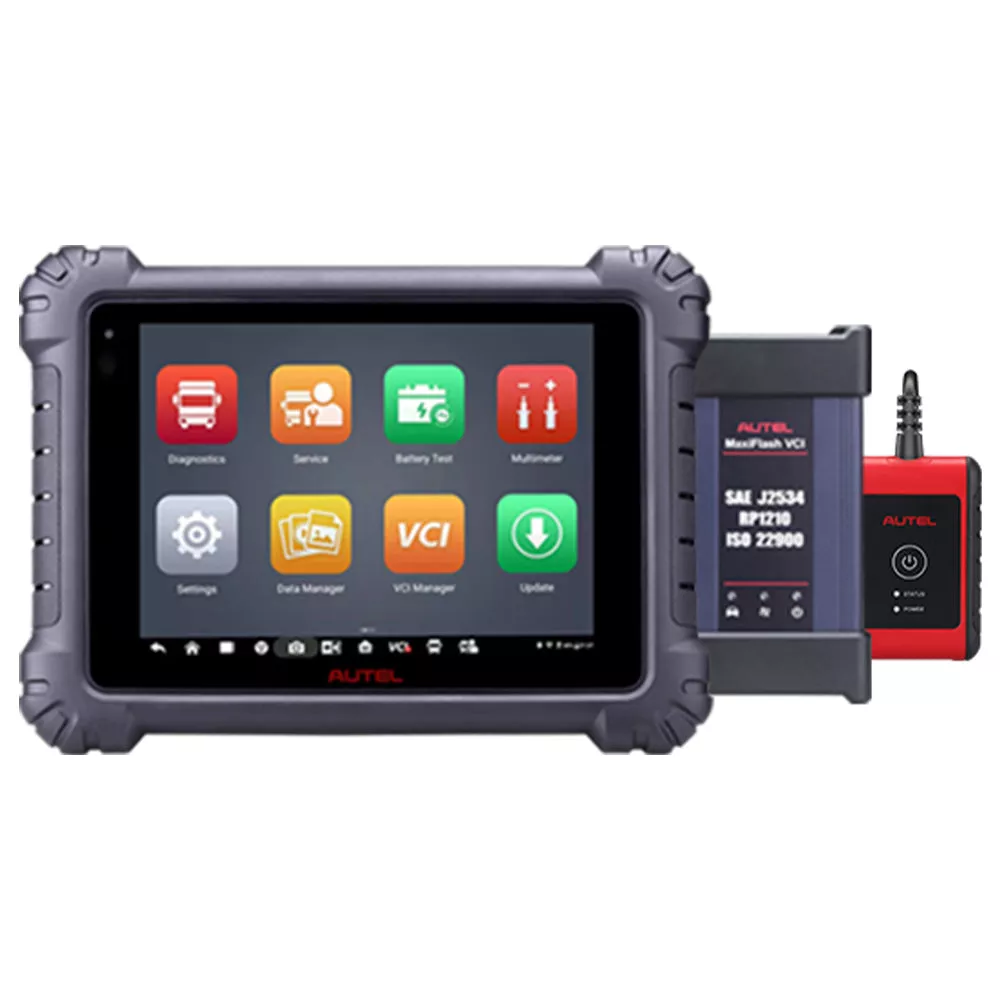

Autel MaxiSys MS909CV provides full functionality and online repair information for you when you are diagnosing light, medium and heavy-duty vehicles, identifying faults and researching repair issues.
It features a powerful octa-core processor and 9.7-inch TFT-LCD capacitive touchscreen for swift diagnoses and optimum viewing. As a diagnostic and information system, MaxiSys MS909CV not only displays the relevant repair fixes and cases gathered from experienced industry experts, but also provides step-by-step guidance to ensure the repair is done correctly and efficiently. MaxiSys MS909CV also performs extensive vehicle diagnoses including the ability to read/erase codes, view and graph live data and perform active tests.
Note: This product is only available for sale in the United States.
Product Features
Diagnoses
Enhanced AutoSCAN / VINScan for easy vehicle identification
DTC analysis / repair guided assist
Pre/Post scan reports
Module topology on selected vehicles (coming soon)
ADAS Calibration
Class 6-8 dynamic calibration
Class 3-5 complete ADAS coverage
Class 6-8 static calibration (coming soon)
Battery Analysis
Heavy duty battery test & health report
Includes the BT506 and the BTAK
The MaxiBAS B200 battery
Compatible with more than 80 models of light, medium and heavy-duty vehicles.
ADAS(Advanced Driver Assistance System) calibration software for class 3 to 5 vehicles and class 6 to 8 vehicles
Includes a one-year limited warranty. One year free update. After that, MS909CV Update Service charges 795 USD / Year.
Product Functions
Upgraded octa-core processor and 128GB storage and android 7.0 operating system with 9.7 touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation.
Diagnoses with module topology on select vehicles and enhanced AutoSCAN / VINScan and DTC analysis / repair guided assist.
ADAS Calibration with new class 6-8 dynamic calibration, supporting class 3-5 complete ADAS coverage. The class 6-8 static calibration (coming soon)
Support heavy duty battery test & health report
Product Specifications:
| Operating System | Android 7.0 |
| Processor | Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity | WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO) |
| BT v.2.1 + EDR | |
| GPS | |
| USB 2.0 (TWO USB HOST Type A, ONE USB mini device) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
| Front: 5.0 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jac | |
| Power and Battery | 15000mAH 3.8V lithium-polymer battery |
| Charging via 12V AC/DC power supply with the temperature between 0C and 45C | |
| Input Voltage | 12V/3A Adapter |
| Operating Temperature | 0 to 50C (32 to 122F) |
| Storage Temperature | -20 to 60C (-4 to 140F) |
| Dimensions(W x H x D) | 304.4mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″) |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Package Includes:
1pc x main unit
1pc x MaxiFlash VCI
1pc x AC/DC adapter12V
1pc x main cable
1pc x USB cable
1pc x Type C USB cable
1pc x Clipper cable
1pc x Cigarette Lighter
2pcs x light fuse(6*30mm)
1pc x Deutsch-9 adapter
1pc x Deutsch-6 adapter
2pcs x JW1 adapters
2pcs x JW2 adapters
2pcs x JW3 adapters
2pcs x JW4 adapters
2pcs x JW5 adapters
2pcs x JW6 adapters
2pcs x JW7 adapters
2pcs x JW8 adapters
2pcs x JW9 adapters
2pcs x JW10 adapters
1pc x UNI-4 cable
1pc x MaixBAS B200
1pc x 400A Current Clamp
2pcs x Multimeter Test Leads
2pcs x Alligator Clips
2pcs x Multimeter Probes
1pc x DM100 Digital Multimeter
1pc x quick reference guide
1pc x packing list
1pc x soft cloth
1pc x case
1pc x carrying case
