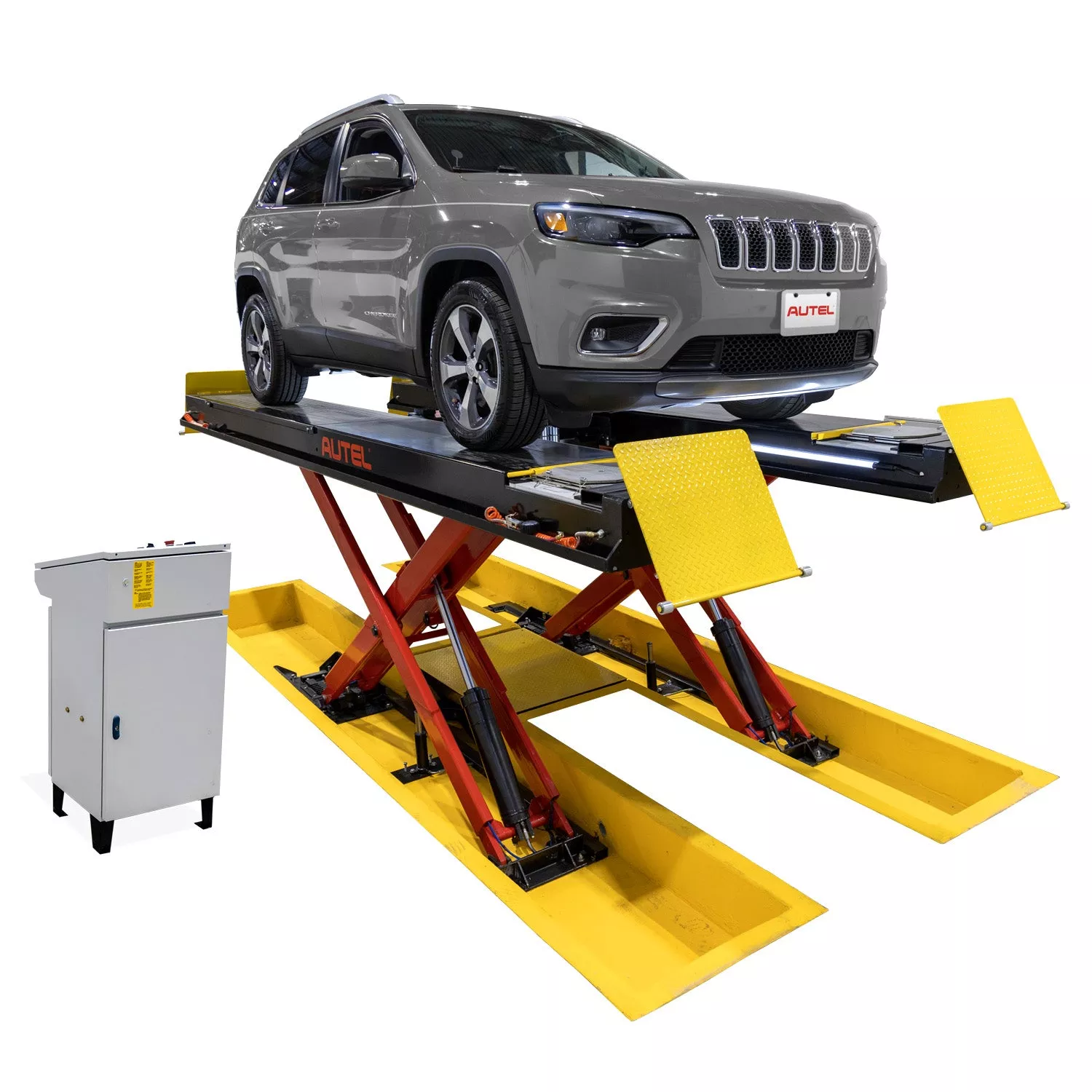

Autel ADAS Bay Max 12K Lift is a flush-mount alignment scissor lift built for shops that want a more efficient bay for wheel alignment and ADAS calibration workflows. The real advantage of the flush-mount format is workflow: easier vehicle positioning, smoother movement around the bay, and a setup that supports repeatable alignment and calibration-related work without the interruptions that come from a less integrated layout.
Because it is a flush-mount system, this lift also requires more installation planning than a simpler above-floor option. Shops should expect to think through concrete work, plumbing or drainage considerations, and electrical requirements as part of the bay design process. For shops building a dedicated alignment or ADAS bay, that planning is often what creates the better long-term workflow.
With a 12,000 lb capacity, the Bay Max 12K is a strong fit for passenger vehicles and light trucks. Its 185-inch runways, double-wide 26-inch runway design, front and rear open runways, and reinforced built-in Z-rails are designed to support stable, repeatable alignment work in a dedicated service bay.
Why Shops Choose the Bay Max 12K
- Workflow-driven flush-mount design: Supports smoother alignment and ADAS bay operation.
- Built for dedicated installation: Best suited for shops prepared to plan around concrete, plumbing, and electrical requirements.
- 12,000 lb capacity: Well matched to most passenger vehicles and light trucks.
- Alignment-ready structure: Built-in Z-rails help reduce flex and support more accurate alignment work.
- Efficient vehicle access: Long runways and low-angle ramps support faster day-to-day loading and positioning.
Premium Shop Features
- Two 6,000 lb jacking beams for wheel service and under-vehicle access
- Built-in air tire inflation kit at each wheel position
- Stainless steel front radius plates and rear slip plates with turn plate pocket protectors
- Shatterproof 24-inch LED lighting kit with automatic shutoff
- Enclosed console control power unit for a professional bay setup
Installation Considerations
Flush-mount lifts require more upfront planning than surface-mounted alternatives. Shops should account for site prep, slab/concrete coordination, plumbing or drainage review where required, and electrical setup before installation. For many alignment and ADAS shops, that extra planning is justified by the workflow benefits of a purpose-built bay.
Best Fit
This model is best for collision centers, repair shops, and ADAS service operations that want a purpose-built alignment and calibration bay for cars, SUVs, and light trucks and are ready to invest in the installation work needed to support that workflow properly.
