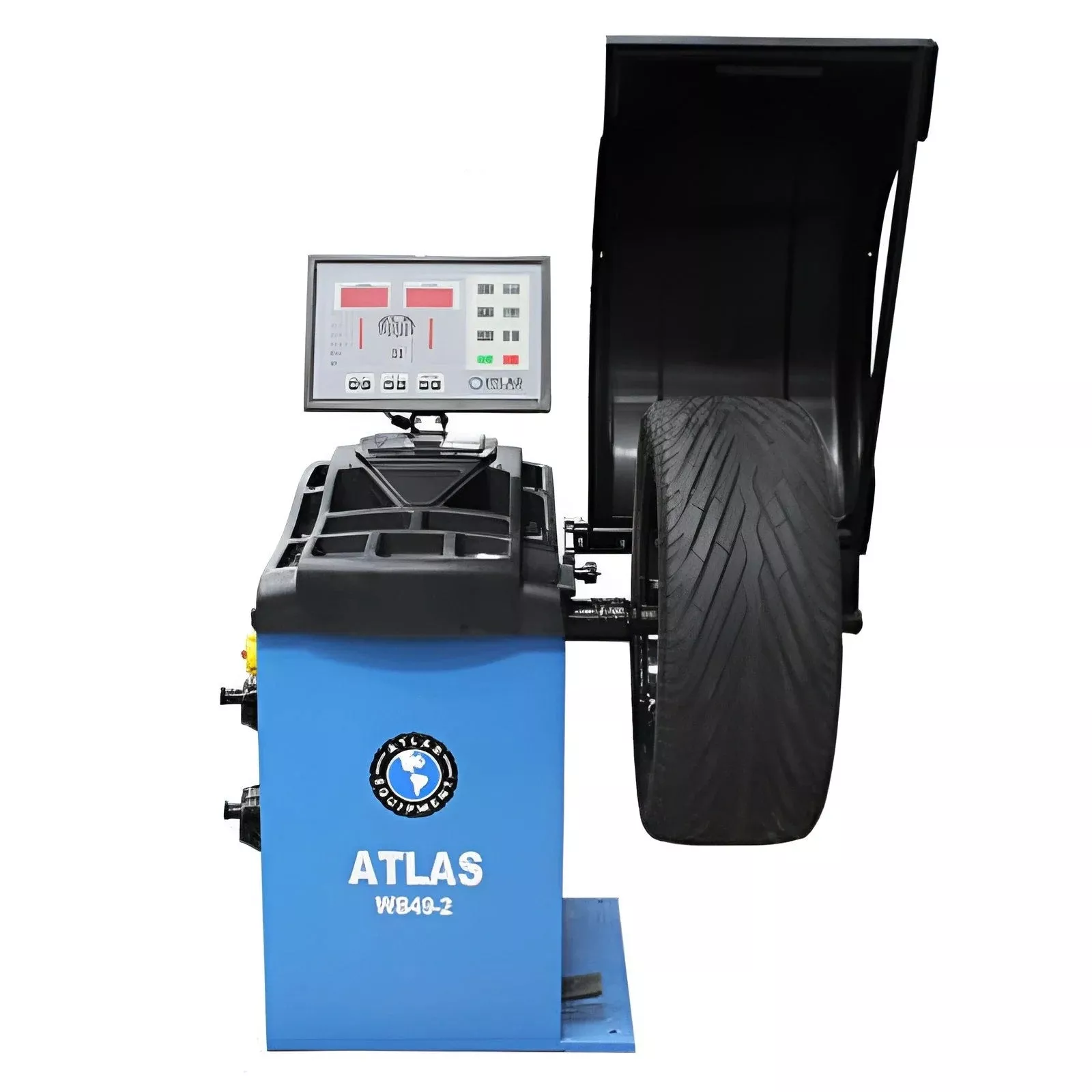

The Atlas WB49-2 is a next-generation computerized wheel balancer designed for shops that want faster operation without sacrificing precision. With automatic 2D data entry and advanced balancing functions, this unit reduces setup time while delivering consistent, repeatable results across a wide range of wheels.
Automatic Measurement for Improved Efficiency
The built-in measuring arm automatically inputs key wheel dimensions such as offset and diameter, eliminating manual entry and reducing operator error. An optional upgrade allows for 3D data entry, giving shops the flexibility to expand capabilities as needed.
Key Features & Benefits
- Computer-controlled motorized spin balancer
- Automatic 2D data entry for faster setup
- Optional 3D upgrade capability (sold separately)
- Raised, easy-to-read display for improved visibility
- Automatic LED work light for better weight placement
- Split-weight function for hidden weight positioning behind spokes
- Auto-positioning for precise weight placement
- Automatic start/stop with hood operation
- Pedal-operated braking system
- Static and dynamic balancing modes
- Rapid optimization (OPT) for increased efficiency
- Self-diagnosing and self-calibrating system
- High stability for accurate imbalance detection
- Displays in grams or ounces, and mm or inches
- No anchor-down installation required
- Includes quick-release nut, 4 centering cones, pliers, and measuring calipers
- Large wheel weight tray for improved organization
- 1 Year Parts Warranty
Designed for Modern Tire Shops
The WB49-2 combines advanced features with a user-friendly design, making it a strong upgrade from entry-level balancers. Its automated functions and improved visibility features help technicians work faster and more efficiently during high-volume operations.
Reliable & Easy to Maintain
Built with a modular, service-friendly design, the WB49-2 allows for easy troubleshooting and maintenance. Its self-diagnostic system displays error codes, enabling quick in-house adjustments without relying on external service calls.
Precision You Can Trust
With true 150 lb balancing capability and high-resolution accuracy, the Atlas WB49-2 delivers dependable performance across a wide range of wheel sizesmaking it a reliable, long-term solution for professional shops.
| Specifications | Details |
|---|---|
| Max Tire Diameter | 39″ (3′ 6″) |
| Rim Sizes (Cars & Light Trucks) | 10″ 32″ |
| Rim Width | 1 1/2″ 20″ |
| Shaft Size | 40mm |
| Max. Wheel Weight | 150 lbs. |
| Balancing Speed | 150 rpm |
| Data Entry | Automatic 2D (Automatic 3D Optional) |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110V |
| Shipping Weight | 400 lbs. |
Documents
- Manual
