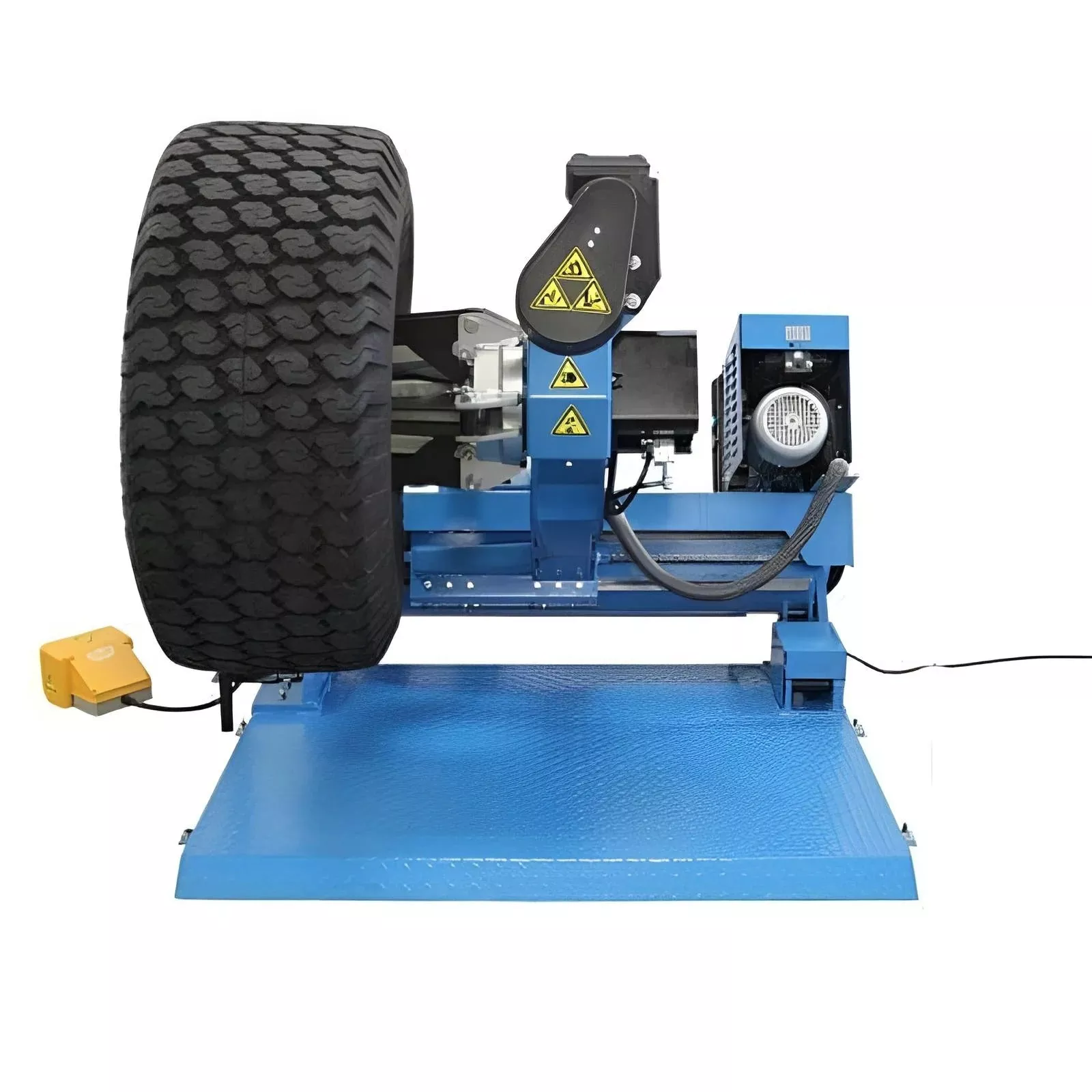

The Atlas TTC305A is a fully automatic, heavy-duty truck tire changer engineered for high-production environments that handle large commercial, agricultural, and industrial tires. Designed to eliminate manual strain and increase efficiency, this machine automates critical operations while maintaining precision and control.
Built to handle rims from 8″ to 26″ and tire diameters exceeding 55″, the TTC305A is ideal for servicing semi-truck tires, 19.5″ wheels, and even forklift tires. Its electric/hydraulic self-centering 4-jaw chuck provides strong and secure clamping, while automatic positioning of the bead tool, carriage, and chuck arm streamlines the entire tire changing process.
The machine includes interchangeable mount/demount and roller heads, allowing quick adaptation for different tire types. A mounted control unit with additional foot pedal controls ensures smooth, ergonomic operation, while an emergency stop switch provides immediate shutdown when needed.
Constructed with a single-piece heavy-duty frame and powered by robust hydraulic and electric motors, the TTC305A is built for durability and long-term reliability in demanding shop conditions.
Features and Benefits
Fully automatic truck tire changer
Handles rims from 8″ to 26″ and tire diameters over 55″
Supports tire widths up to 30 1/2″
Automatic movement and positioning of bead tool, carriage, and chuck arm
Integrated bead breaker system
Interchangeable mount/demount and roller heads
Electric/hydraulic self-centering 4-jaw chuck
5 rim locking positions
Mounted control unit with additional foot pedal controls
Heavy-duty tire tool included
Rim clamps for steel and alloy wheels included
Alloy rim adapter set with plastic inserts included
Emergency stop safety system
Designed for high-production commercial use
1-year parts-only warranty
| Specifications | Details |
|---|---|
| Rim Clamping Range | 13″ 26″ |
| Minimum Clamping Size (with adapters) | 8″ |
| Max Wheel Weight | 838 lbs |
| Max Tire Diameter | 55″+ |
| Max Tire Width | 30 1/2″ |
| Clamping Power | 6,600 lbs |
| Operating Pressure | 01885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 3,990 lbs |
| Tool Arm Positioning | Automatic |
| Tool Head Positioning | Automatic |
| Construction | Single-piece frame with solid floor plate |
| Hydraulic Motor | 2 HP, 220V single-phase (30 amp breaker required) |
| Chuck Motor | 3 HP, 220V single-phase (30 amp breaker required) |
| Shipping Weight | 1,490 lbs |
