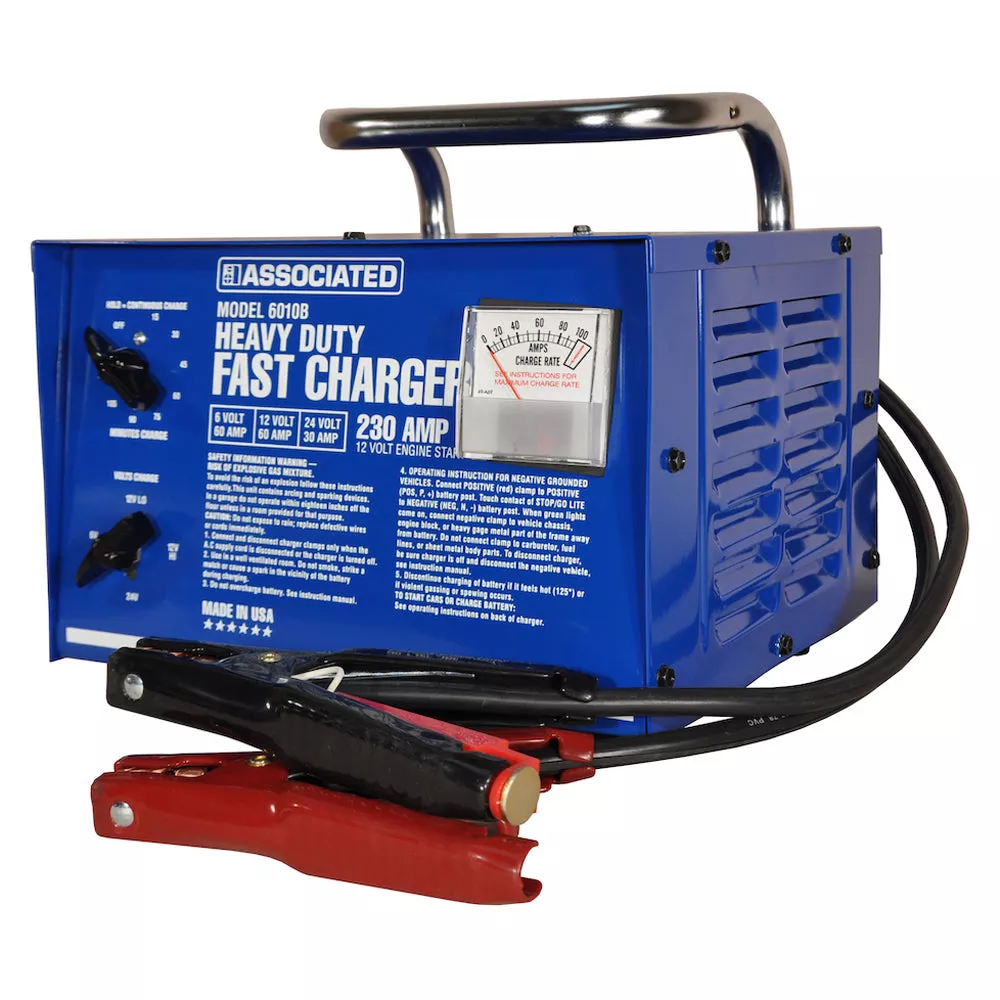

Associated 6010B 6/12/24V Heavy Duty Portable Bench Charger – 60A / 60A / 30A
Continuous Charge Rates – 60A, 60A, 30A
230 Amp Crank Assist
Associated chargers are made with powder-coated steel enclosures, chrome tubular handles, 100% copper cable with flexible insulation (cold weather application), and copper jaws on insulated steel clamps.
– Fan cooling mechanism prevents overheating and extends product life
– Heavy duty vacuum impregnated transformer to seal the unit against external agents
– Patented multi-diode rectifiers
– 500 Amp Fully Insulated Clamps with Flexi-Spring strain relief
– Automatic reset AC and DC circuit breakers
– Automatic electric timer
– Two-Year Bumper-to-Bumper Manufacturers Warranty and Five-Year Limited Warranty for Transformer/ Rectifier
– DOE Compliant and Energy Efficient
– Made in USA of US and Global Components
Specifications
Continuous Charging Rate: 60A @ 6V, 60A @ 12V, 30A @ 24V
Crank Assist: 230A
Operating Charging Voltage: 6V / 12V / 24V
Battery Types: Lead-Acid Flooded Cell
Indoor/Outdoor Rated: N/A
Polarity Indicator: Yes
DC Cables: 7 ft, 4AWG copper
DC Clamp: 500A, Insulated Copper Jaw
AC Input: 120 VAC (nominal)
AC Cord: 6.5 ft, 16-3, Grounded North American Plug
Weight: 38 lbs
Length: 17″
Width: 16″
Height: 17″
Information Downloads
Operator Manual
Product Bulletin
