SKU: 171-2801 | UPC: 672036042288

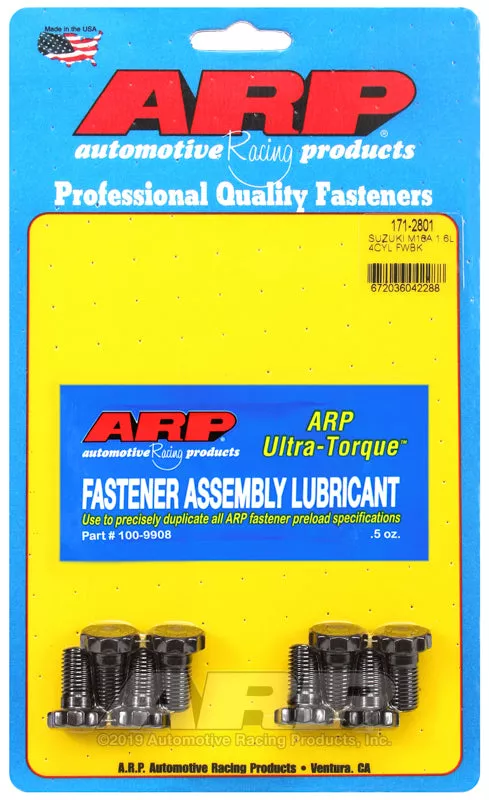

ARP Suzuki 1.6L M16A 4cyl Flywheel Bolt Kit Fits 2005-2011 Swift Sport 2006-2013 SX4
Secure your flywheel with ARP’s application-specific bolt kit for Suzuki 1.6L M16A 4-cylinder engines. Engineered for Swift Sport and SX4 models these bolts maintain consistent clamp load under high-rpm stress and heat. Ideal for modified engines in daily drivers or race cars.
Key Features
- Genuine ARP Fasteners: Proven clamping force handles extreme torque and vibration
- Precision-Rolled Threads: Ensures maximum thread engagement and accurate torque retention
- 8740 Chromoly Steel: Heat-treated to 180000 PSI tensile strength resists stretching and fatigue
- Complete Matched Set: Includes 6 bolts washers for direct OEM replacement
- Black Oxide Finish: Provides corrosion resistance for long engine life
Product Notes
- Torque to ARP specs of 65-70 ft-lbs with moly lube for optimal preload
- Inspect bolts during clutch service for wear
- Compact lightweight kit ships without restrictions
Installation Notes
- Professional installation recommended.
- Clean block threads and apply ARP Ultra-Torque lubricant before assembly
- Torque in crisscross sequence recheck after 500 miles
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2011 | Suzuki | Swift Sport | 1.6L M16A ZC31S |
| 2006-2013 | Suzuki | SX4 | 1.6L M16A |
| 2001-2007 | Suzuki | Liana | 1.6L M16A |
| 2007-2013 | Suzuki | SX4 Sportback | 1.6L M16A |
Why Choose ARP?
- Proven in NHRA Top Fuel and endurance racing for over 50 years
- USA-made with rigorous quality control and testing
- Limited lifetime warranty covers fastener breakage
Frequently Asked Questions
- Q: Will this kit fit my 2007 Suzuki Swift Sport ZC31S M16A engine?
A: Yes ARP 171-2801 is direct fit for all 2005-2011 Swift Sport 1.6L M16A models replaces OEM bolts exactly. - Q: What material and strength rating do these bolts have?
A: Forged 8740 chromoly steel heat-treated with rolled threads for 180000 PSI tensile strength superior to stock. - Q: What torque specs and lube should I use for installation?
A: Follow ARP instructions torque to 65-70 ft-lbs using ARP Ultra-Torque or moly paste re-torque after break-in.
Shipping & Handling
- Method: UPS Ground USPS Priority Mail
- Availability: In stock – ships same or next business day
- Packaging: ARP branded box 6 x 4 x 1 inches
- Weight: 0.25 lbs
