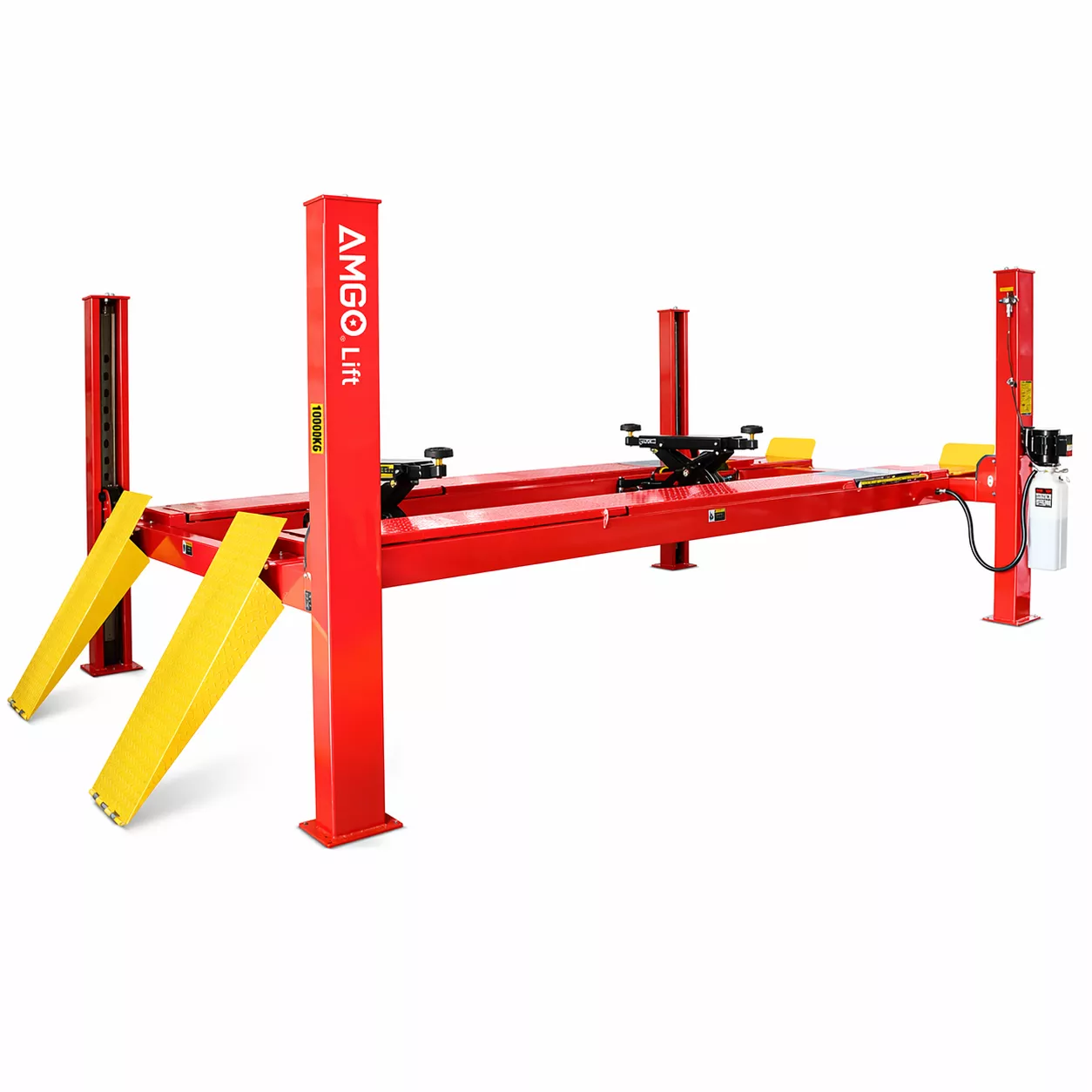

The AMGO PRO-14A is a heavy-duty 14,000 lb capacity four-post lift engineered for professional wheel alignment and full-service vehicle maintenance. Built on the proven PRO-14 platform, this alignment-ready model features integrated slip plates and turnplate pockets, making it ideal for precise alignment work on cars, trucks, and long-wheelbase vehicles.
Key Features & Benefits
- 14,000 lb lifting capacity for trucks, vans, and commercial vehicles
- Integrated slip plates for accurate rear-wheel alignment adjustments
- Adjustable turnplate pockets to support a wide range of wheelbases
- Extended runways accommodate longer vehicles including trucks and RVs
- Air-operated safety lock release system for efficient operation
- Mechanical self-locking safety device enhances stability during use
- Cable-driven system using aircraft-grade steel cables
- Hydraulic cylinder system with high-quality seals and compensation valve
- Non-skid diamond plate runways for improved traction and safety
- Multiple safety lock positions with built-in cable slack protection
Alignment-Ready Design
Unlike standard service lifts, the PRO-14A is purpose-built for alignment work. The integrated slip plates and turnplate pockets allow for precise adjustments without additional accessories, making it a complete solution for shops offering alignment services.
Why This Lift Stands Out
This model combines high lifting capacity with alignment functionality, eliminating the need for separate alignment equipment. Its extended platform design makes it especially valuable for shops working on larger vehicles, while the air-assisted lock release improves workflow efficiency in high-volume environments.
Installation & Requirements
- Minimum 4″ thick, 3,000 PSI concrete required
- Indoor installation only not designed for outdoor use
- Requires 0.8 MPa air supply for lock release system
- Professional installation recommended (electrical + air + anchoring)
What’s Included
- AMGO PRO-14A Four Post Lift
- Integrated slip plates
- Adjustable turnplate pockets
- Hydraulic power unit (ETL certified)
- Cable system and safety locks
- Non-slip runway platforms
- Drive-on ramps
- Installation hardware and manual
| Specifications | Details |
|---|---|
| Model | PRO-14A |
| Lift Type | Four-Post Alignment Lift |
| Lifting Capacity | 14,000 lbs |
| Lifting Time | 81 seconds |
| Overall Length (With Ramps) | 257 1/2″ |
| Overall Width | 130 7/8″ |
| Width Between Columns | 116″ |
| Max Lifting Height | 77 9/16″ |
| Max Lock Height | 74″ |
| Drive-Thru Width | 102 1/16″ |
| Runway Width | 46″ |
| Motor | 2.0 HP |
| Structural Warranty | 5 Years |
| Hydraulic Components Warranty | 3 Years |
| Electrical Components Warranty | 2 Years |
| Shipping | Free freight shipping continental U.S. |
| Processing Time | 12 business days (in-stock items) |
| Estimated Delivery | 510 business days |
Documents
- Manual
