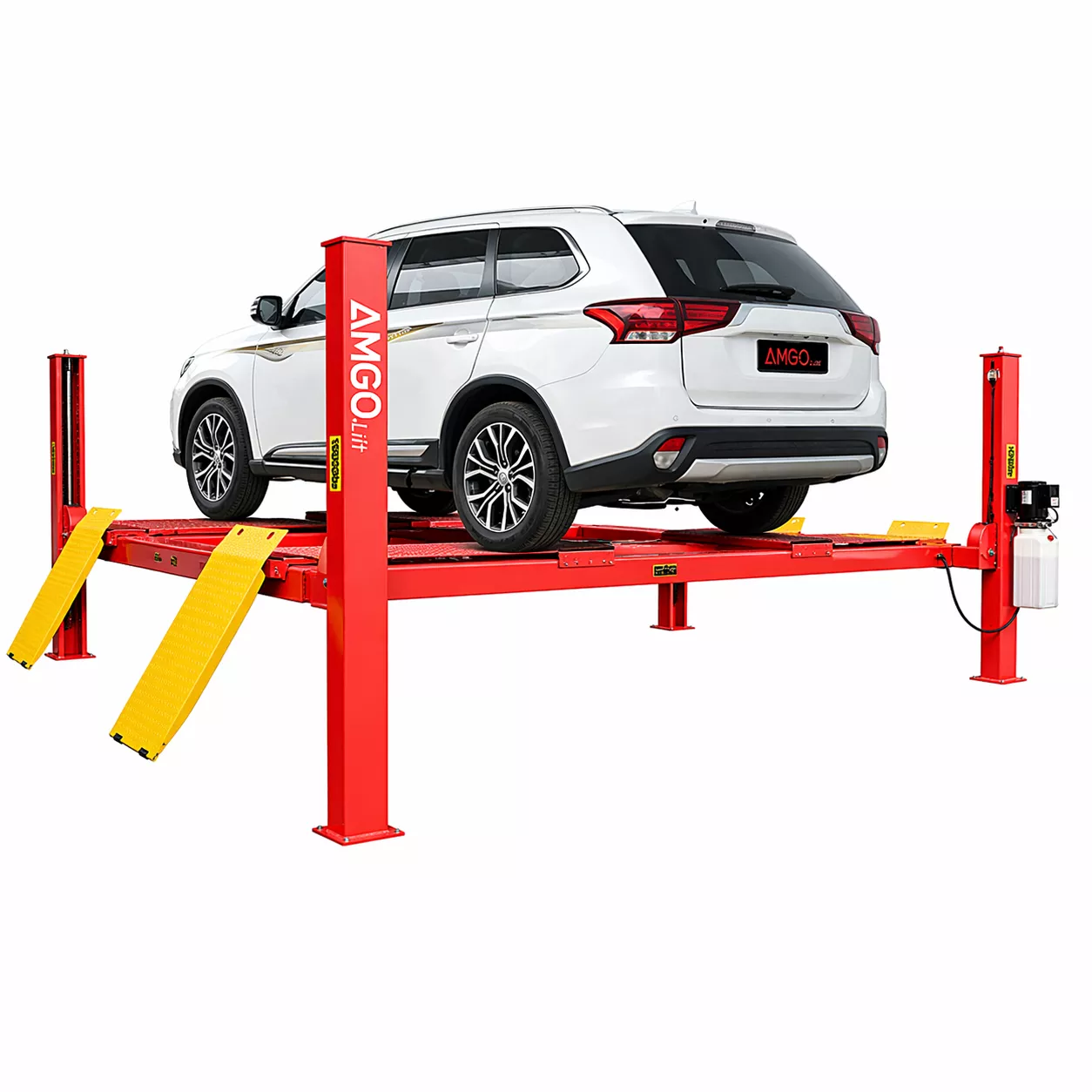

The AMGO PRO-12SX is a heavy-duty four-post lift designed for general service applications where extra width and drive-through clearance are critical. With over 118 inches between columns and a stepless adjustable runway system, it provides superior accessibility for trucks, vans, and wide-body vehicles. Built for durability and daily shop use, the PRO-12SX combines a robust steel structure, high-quality hydraulic system, and advanced dual safety features for reliable performance in demanding environments.
Key Features & Benefits
- 12,000 lb lifting capacity for cars, trucks, and commercial vehicles
- Extra-wide design with over 118″ between columns
- ETL-certified AMGO hydraulic power unit included
- Mechanical self-locking safety system with air-operated release
- Multiple safety locks with integrated cable-slack protection
- Cable-driven system using aircraft-grade steel cables
- High-performance hydraulic cylinder with premium seals and compensation valve
- Non-slip diamond plate runways for maximum traction
- Stepless adjustable width between platforms
- Heavy-duty steel construction for long-term durability
Installation Requirements
- Minimum concrete thickness: 4 inches
- Minimum concrete strength: 3,000 PSI
- Air pressure required: 0.8 MPa
- Indoor installation only
Optional Accessories
- Extension platform kit (+26″ length)
- Rolling jack (RJ-6A pneumatic / RJ-6H manual 6,000 lb capacity)
- Air line kit for rolling jacks
- Adjustable block kit
| Specifications | Details |
|---|---|
| Model | PRO-12SX |
| Lift Type | Four Post Lift (Extra Wide) |
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 45 seconds |
| Overall Length (Incl. Ramps) | 232 5/8″ |
| Overall Width | 132 1/8″ |
| Width Between Columns | 118 1/8″ |
| Width Between Runways | 35 7/16″ 53 3/4″ |
| Outside Edge of Runways | 75 7/16″ 93 3/4″ |
| Max Lifting Height | 74 7/16″ |
| Max Lock Height | 70 7/8″ |
| Max Height Under Runway | 68 7/8″ |
| Max Lock Height Under Runway | 65 3/4″ |
| Drive-Thru Clearance | 104 3/16″ |
| Overall Height | 86″ |
| Minimum Height | 6 11/16″ |
| Motor | 2.0 HP |
| Shipping | Free freight shipping continental U.S. |
| Processing Time | 12 business days (in-stock items) |
| Estimated Delivery | 510 business days |
Documents
- Manual
