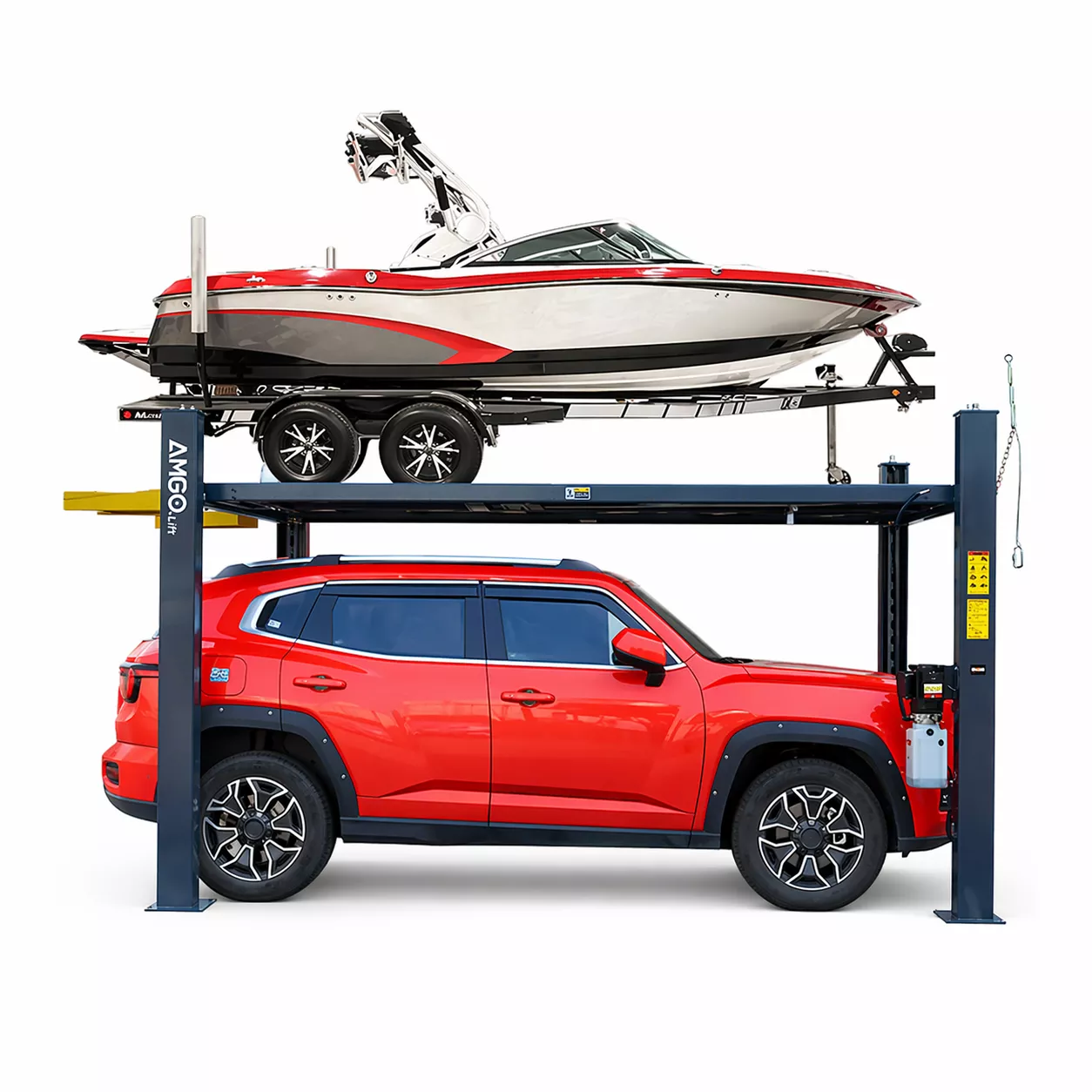

AMGO 408-HPX 4-Post Boat Storage Lift 8,000 lb Capacity

The AMGO 408-HPX is the standard configuration in AMGO’s boat storage lift lineup, designed for reliable, space-efficient storage of recreational boats and trailers. It combines a straightforward design with strong safety systems and flexible setup options, making it a solid baseline model compared to the extended-length and extended-height versions.

Key Features & Benefits

• 8,000 lb lifting capacity for boats and trailer setups
• Manual single-point lock release (no air compressor required)
• Dual safety system with primary locks and cable-slack protection
• Single-cylinder hydraulic system with cable synchronization
• Non-slip diamond plate runways for secure loading
• Two adjustable width settings to fit different trailers
• Over 110″ drive-through clearance for easy access
• Foldable drive-on ramps included
• ETL-certified power unit included
• Power unit can be mounted on any column

Core Design & Operation

This lift uses a single-cylinder and cable-driven system for smooth, even lifting, a manual safety release for controlled lowering, and mechanical primary locks with cable-slack safety backup for redundancy. This setup keeps things simple, reliable, and lower maintenance compared to air-lock systems.

Adjustability & Fitment

• Runway spacing: Narrow ~46 1/2″, Wide ~66 3/8″
• Drive-through clearance: ~111″
• Designed to accommodate a wide range of boat trailers and widths

What’s Included

• 408-HPX four-post lift system
• Hydraulic power unit (1.0 HP / 110V)
• Foldable drive-on ramps (2 units)
• Adjustable trailer platform
• Safety lock ladder system
• Cable and pulley system
• Installation hardware

Installation Requirements

• Minimum concrete thickness: 4″ (100 mm)
• Minimum concrete strength: 3,000 PSI
• Primarily indoor use (outdoor requires optional motor cover)
• Power: 110V single phase (1.0 HP motor) must be installed by a qualified electrician
• Flat, level concrete surface only (no asphalt)

Documents

• Manual
• Brochure
