Amass XT30U Male to Female LiPo Battery Extension – Custom Cable Assembly

Original price was: $4.00.Current price is: $2.61.

Sale!
SKU: 5160059403 Category:
Share

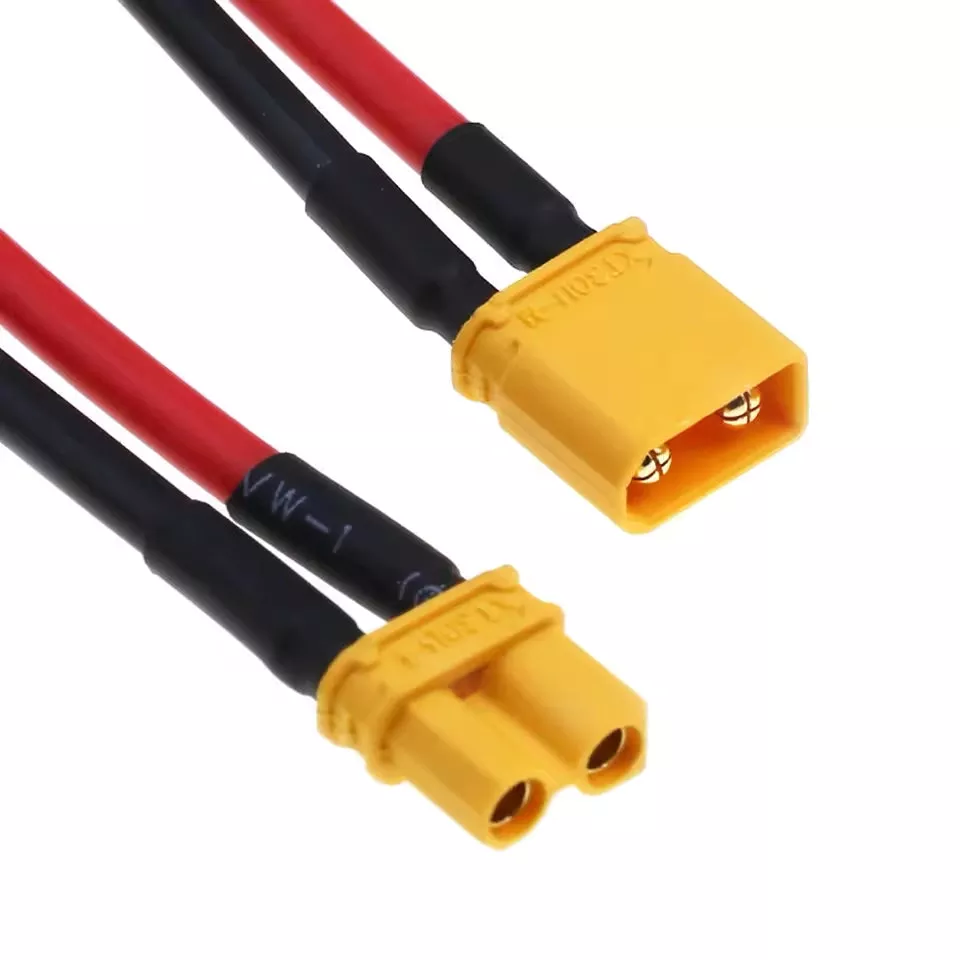

  • Dual-end 2-core extension cable terminated with an Amass XT30U male connector on one end and an XT30U female on the other, used to extend an XT30-equipped LiPo or Li-ion battery lead without splicing the “U” housing variant adds a vertical PCB-mount-style sheath that improves grip strength and strain relief over the original XT30.
  • Available in 14, 16, and 18 AWG with high-strand silicone insulation (65 C to +200 C) or PVC where cost dominates, in stock lengths of 6, 9, 12, 18, and 24 inches, with red/black polarity coding as standard and optional heat-shrink sleeving over the parallel conductors.
  • XT30U connector rated 15 A continuous and up to 30 A peak at 500 V DC per Amass X-series specification, with gold-plated copper contacts in a glass-fiber-reinforced nylon housing rated to 280 C making the XT30U interface itself the current-limiting element of the finished extension at 15 A continuous.
  • Used as battery-to-ESC and battery-to-flight-controller extension cabling on 1S4S FPV cinewhoops and tinywhoops, micro and sub-250 g quadcopters, small RC aircraft and surface vehicles, indoor racing drones, and bench-test rigs where the stock pigtail is too short to route cleanly to the receiver or VTX.
  • Custom wire gauge (1420 AWG), overall length, silicone or PVC insulation, red/black or all-black configuration, heat-shrink or braided sheathing, and antispark XT30PW or PCB-mount variant on either end available on request submit a quote request for non-stock builds.
