The AC1700 series is the first refrigerant handling machine featuring a high-definition TFT color screen, delivering clear data visualization through intuitive icons and mechanical buttons for effortless operation.
Built on the reliable AC1000 hardware platform, it combines stability with advanced functionality for superior performance in refrigerant management.
Why Choose the AC1700?
-
Full-Automatic Operation Compliant with SAE J2788 standards, featuring one-touch automation for vacuum, recovery, and recharge.
-
Smart Database & Upgradability Preloaded vehicle database with SD card support for easy updates and customization.
-
High Precision & Efficiency 95% recovery rate, 15g refill accuracy, and a 16L large-capacity storage tank for uninterrupted operation.
-
Dual Refrigerant Support Compatible with both R134a and R1234yf, servicing both traditional fuel and electric vehicles.
Product Overview

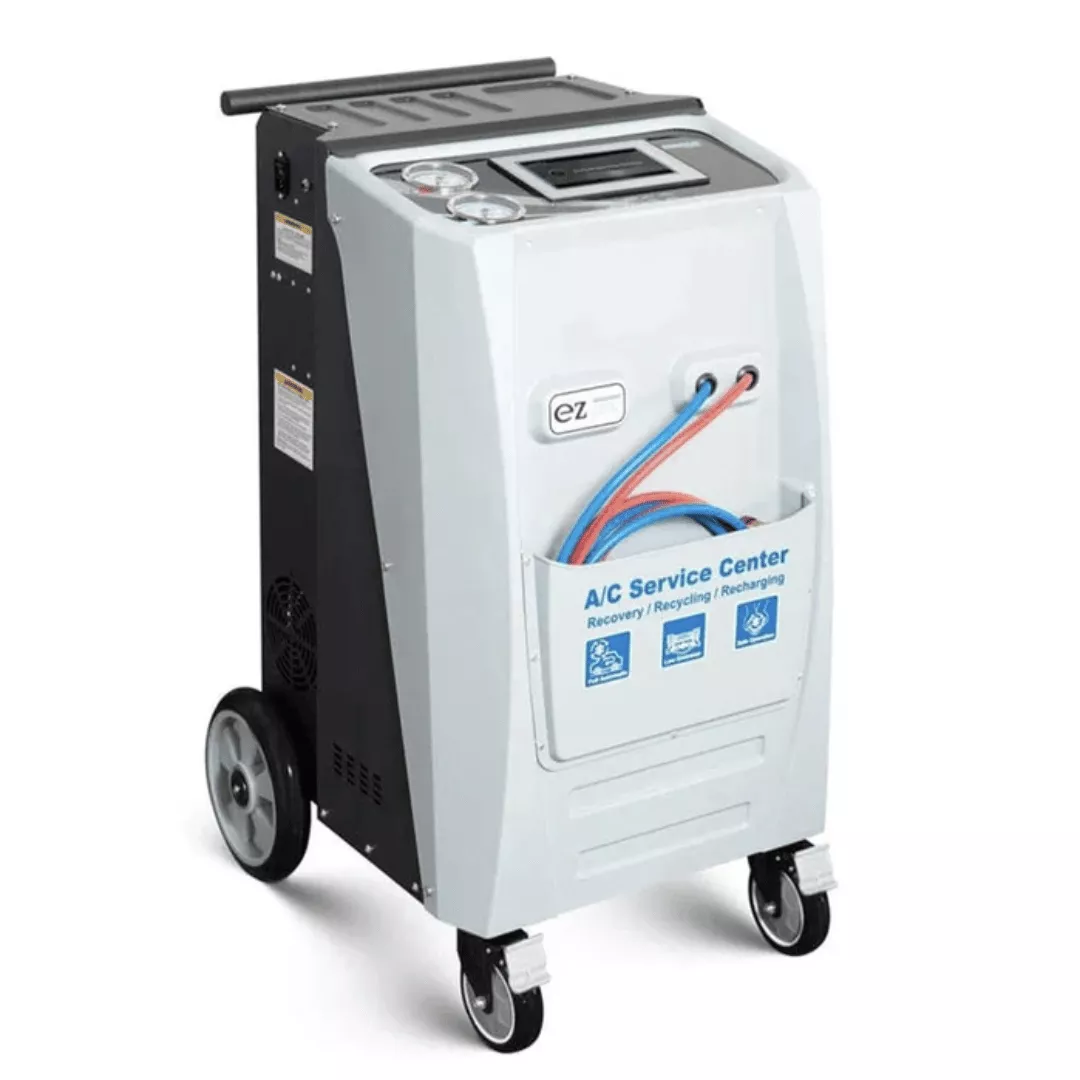

The AC1700 is an all-in-one refrigerant recovery, recycling, and recharge machine designed for automotive HVAC systems. It simplifies complex procedures with automated functions, a user-friendly interface, and robust hardware for workshops handling diverse vehicle types.
AC1700 Key Features
1. Automated Refrigerant Handling
Performs vacuum, recovery, and recharge in one seamless cycle, eliminating manual valve adjustments. SAE J2788 compliance ensures industry-standard reliability.
2. 5-Inch HD Color Display & Controls
The TFT screen displays real-time metrics (pressure, weight, etc.) with intuitive icons, paired with tactile buttons for precise control in noisy workshop environments.
3. Vehicle Database & SD Card Expansion
Pre-installed with common vehicle specifications; add or modify data via SD card to streamline workflows for newer models.
4. High-Capacity Components
Equipped with a 16L storage tank, 60L/min vacuum pump (10Pa ultimate vacuum), and 3g/30kg high-resolution scale for accurate refrigerant measurement.
AC1700 Technical Specifications
-
Refrigerants Supported: R134a, R1234yf
-
Vehicle Compatibility: Fuel vehicles, EVs (working temp: 1050C)
-
Pressure Limit: 18bar
-
Power Supply: 220V/50Hz or 110V/50Hz
-
Accessories: 3M SAE-J2196 hoses, 250ml oil bottle, optional printer/heating belt
- Supported Languages: English, Russian
Usage Notes
-
Operate within 1050C ambient temperature for optimal performance.
-
Avoid mixed refrigerant cross-contamination; use dedicated hoses/tanks.
