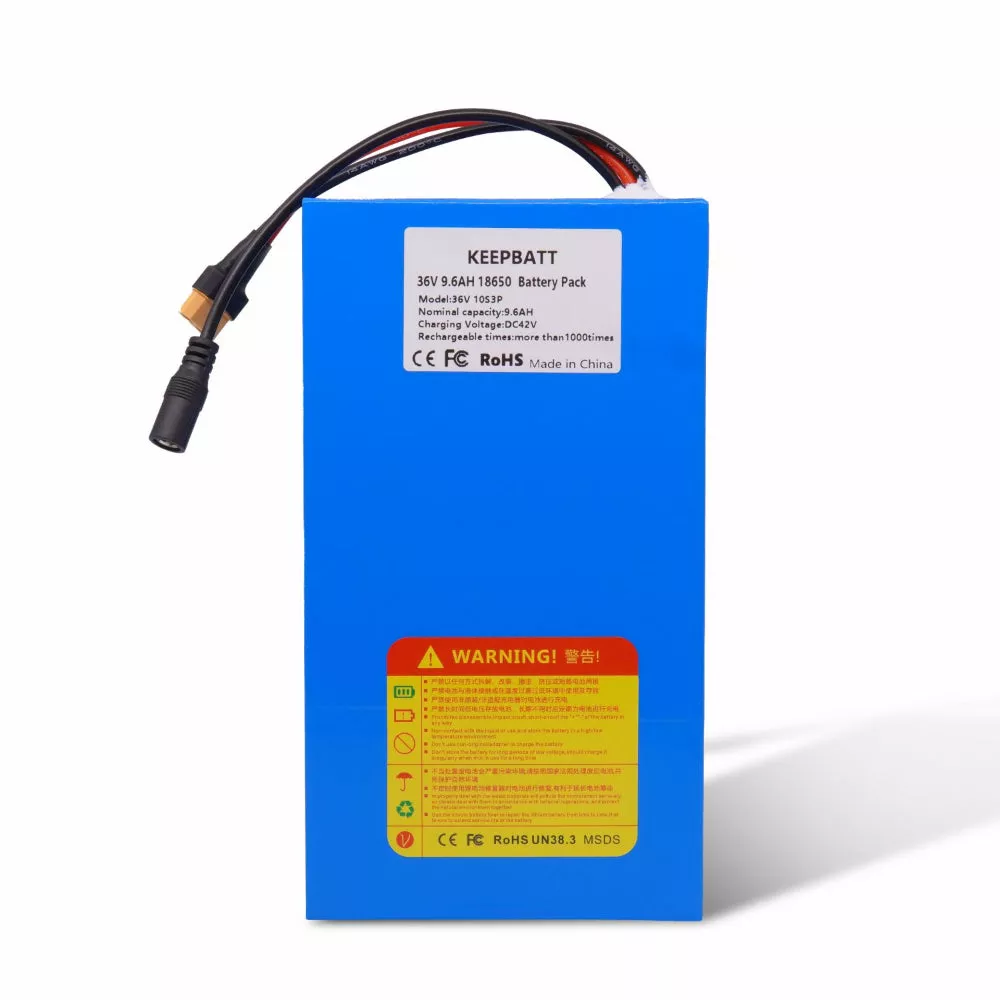

36v 9.6ah 18650 Lithium Battery For Electric Bikes And Scooters
Product information:
- Battery type: AED 18650 9.6 Ah
- Configuration: 10 groups in series (10S) and 3 sections (4P) in parallel, integrated BMS protection, with overcharge, deep discharge and short circuit protection
- Package: PVC
- Weight: 1500g
- Width: 110 mm
- Height: 40mm
- Length: 200mm
- Discharge connector: Standard 16 AWG red and black soft silicone cable + XT60
- Length of the drain line (with plug end): 120mm
- Charging plug: 5.5 x 2.1 mm DC plug
- Cable length of the charging plug (with plug end): 120 mm
- Nominal voltage: 36V
- Output voltage range: 27.5V-42V
- Nominal capacity: 9.6 Ah
- Nominal power: 345Wh
The package contains:
- 1 x battery
