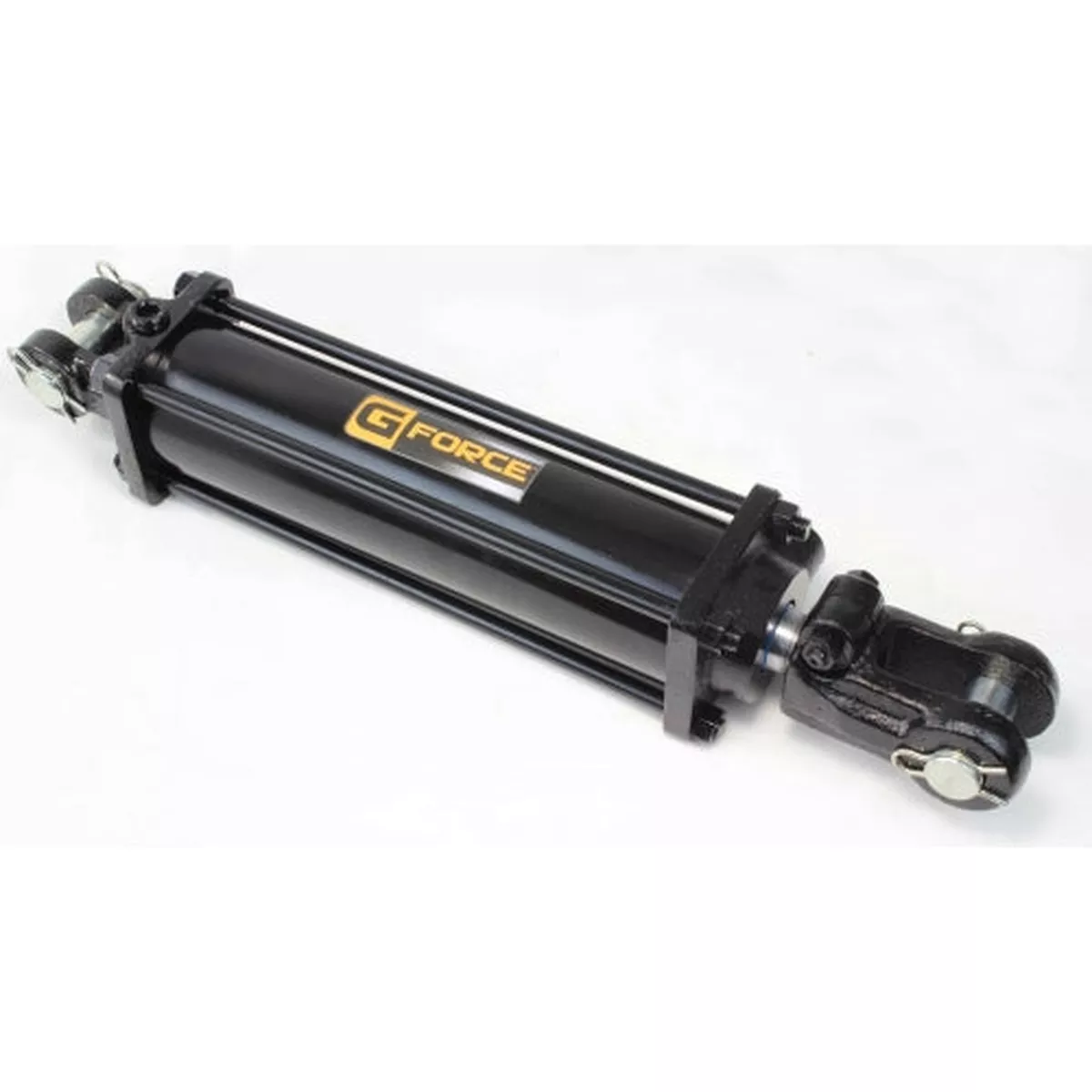

11454 4″ Bore, 8″ ASAE Stroke Tie Rod Hydraulic Cylinder
- Designed for double acting applications
- Standard black color
- All seals manufactured to US specification
- 100% Hydro-pressure test
- Chrome plated rod surface treatment
|
Bore x Stroke (inch) |
Shaft Diam, (inches) |
Center to Center of Pin (Retracted, inches) |
Center to Center of Pin (Extended, inches) |
Ports (NPTF) |
Port Thread (SAE) |
Weight (lbs) |
Rated Pressure (psi) |
Max. Pressure (psi) |
| 4X8 ASAE | 1 1/2 | 20 1/4 | 28 1/4 | 1/2″ | 38.5 | 2500 | 3850 |
Dimensional Data in Inches
| A | B | C | E | G | H | I | J | M | P | Q | R | S | T | V | W |
| 12.50 | 0.244 | 1/2″ NPTF | 2.625 | 2.625 | 1.125 | 1.125 | 2.125 | 2 | 16 | 1.250″-12 UNF | 1 | 2.250 | 2.250 | 4.920 | 4.920 |
